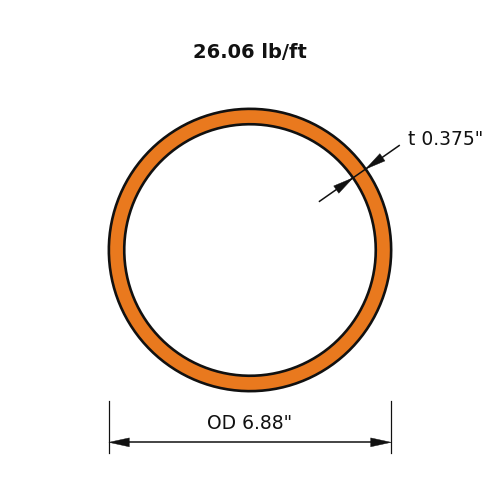

HSS Shapes - Round - HSS6.875x.375

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

Dimensions

PropertyValue
Nominal Weight26.06
Outside Diameter6.875
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix38.2
Zx14.9
Sx11.1
rx2.31
Iy38.2
Zy14.9
Sy11.1
ry2.31
J76.4
C22.2

Full sortable table: Section properties table for this family
