HSS Shapes - Round - HSS5x.188

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

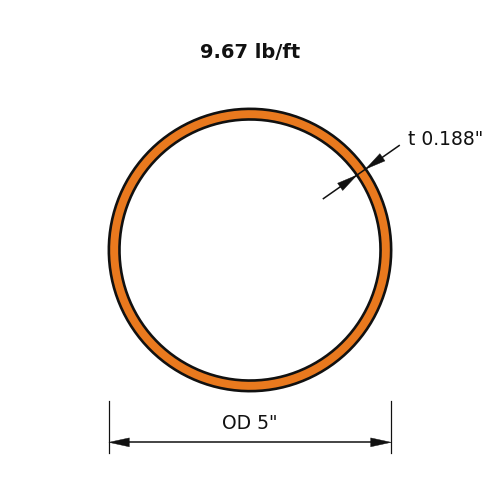

Dimensions

PropertyValue
Nominal Weight9.67
Outside Diameter5.0
Nominal Thickness0.188

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix7.69
Zx4.05
Sx3.08
rx1.71
Iy7.69
Zy4.05
Sy3.08
ry1.71
J15.4
C6.15

Full sortable table: Section properties table for this family
